For Water / Sewage / Gas / Chemicals /
Telecom & Electrical Ducting Applications
Proving their worth across industries,
through challenging terrain.
 |
|

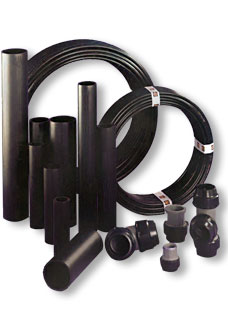

EONN's High-Density Polyethylene Pipes (HDPE) are made from
polyethylene, a cost effective material used for a broad range of piping
solutions in municipal, industrial, marine, mining, landfill, duct and
agricultural applications. They have been subjected to the most gruelling
of tests and proven effective for above ground, surface, buried, slip lined,
floating, and sub-surface marine applications.
EONN's HDPE Pipes carry potable water, wastewater, slurries,
chemicals, hazardous wastes and compressed gases, with the greatest
of ease. In fact, polyethylene pipes have a long and distinguished history
of service to the gas, oil, mining and other industries. They have the
lowest repair frequency per kilometre per year, as compared with all other
pressure pipe materials used for urban water and gas distribution.
EONN's HDPE Pipes are strong, extremely tough and very durable.
Whether you're looking for long service, trouble-free installation,
flexibility, resistance to chemicals or a myriad of other features, EONN's
HDPE Pipes will meet all your requirements. |
|
|
|
Top  |

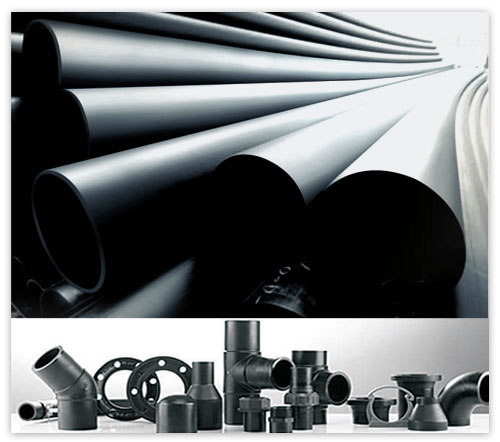

| THE UNMATCHED PROPERTIES OF EONN HDPE PIPES
MECHANICAL PROPERTIES
- Long Term Resistance to Internal Pressure
- High Tensile Properties
- Good Flexural Properties
- High Impact Strength
- Excellent Flow Characteristics
- Light Weight & Flexibility
THERMAL PROPERTIES
- Low Thermal Conductivity
- High Thermal Stability
CHEMICAL PROPERTIES
- High Resistance to Chemical Attack
- High Environmental Stress Cracking Properties
OTHER PROPERTIES
- High Abrasion Resistance
- Low Coefficient of Friction
- Resistant to Animal Life
- Low Flammability
- Physiological Harmless
- High Weather ability
|
|
 |
Top |
THE WINNING FEATURES OF
THE ALL-ROUNDER EONN HDPE PIPES
- Excellent corrosion resistance and chemical resistance,
resulting in a longer life
- Extremely light weight, hence easy to handle and transport.
- High abrasion resistance
- Earthquake resistance
- High UV resistance to scaling and biological build up
- Emergency connection possible
- High impact strength
- No exhilaration and infiltration, helps maintain the quality of fluid onveyed
- High flexibility combined with strength.
- Excellent water hammer characteristic helps, sustaining surges
- Shifting soils-no breakage
- Excellent flow characteristic leading to significant energy savings
- Smooth inner walls minimises frictional losses.
- Safe for potable water supply.
|
| EASY TO INSTALL |
|
LONG LIFE |
|
LEAK - FREE. |
| EONN HDPE Pipes are easy to install, because they are lightweight
and come in long lengths. Because of their rapid installation
properties and less frequent jointing, they are widely used in
applications which include stock watering, irrigation systems,
communication, gasses and reticulated water mains. |
|
HDPE Pipes have a proven record for high reliability, as they have
been functioning perfectly now for a period of 50 years. HDPE has
proved beyond a shadow of doubt that it can provide a long
maintenance free lifetime with low whole life costs, when compared
with many other materials. In fact, the WSAA Polyethylene Pipeline
Code predicts the life of HDPE Piping to be well in excess of 100
years, before any major rehabilitation is required. |
|
EONN HDPE Pipes are normally joined by heat fusion. Butt, socket,
sidewall fusion and electro fusion create joints that are as strong as
the pipes themselves, and virtually leak free. This unique joining
method produces significant cost reductions when compared to
other materials. |
| |
|
|
|
|
| CORROSION, ABRASION, AND CHEMICAL RESISTANT. |
|
EXCELLENT FLOW CHARACTERISTICS. |
|
LIGHTWEIGHT AND FLEXIBLE. |
| The performance of EONN HDPE Pipes in mining, dredging and
similar applications proves that they will outwear many more costly
piping materials while conveying a variety of abrasive slurries.
Since HDPE has excellent corrosion resistance and is virtually
inert, it does not need expensive maintenance or cathodic
protection. It offers better overall resistance to corrosive acids,
bases and salts than most piping materials. In addition, HDPE is
unaffected by bacteria, fungi and the most "aggressive" naturally
occurring soils. It has good resistance to many organic substances,
such as solvents and fuels. |
|
Because EONN HDPE Pipes are smoother than steel, cast iron,
ductile iron, or concrete, a smaller HDPE pipe can carry an
equivalent volumetric flow rate at the same pressure. It has less
drag and a lower tendency for turbulence at high flow. Its superior
chemical resistance and "non-stick" surface combine to almost
eliminate scaling and pitting and preserve the excellent hydraulic
characteristics throughout the pipe service life. |
|
EONN HDPE Pipes are produced in straight lengths or in coils.
Made from materials about one-eighth the density of steel, they are
lightweight and do not require the use of heavy lifting equipment for
installation. They reduce the need for fittings, are excellent in
shifting soils and perform well in earthquake-prone areas. HDPE
Piping resists the effects of freezing and allows bending without the
need for an excessive number of fittings. Since HDPE is not a brittle
material, the piping can be installed with bends over uneven terrain
easily, in continuous lengths without additional welds or couplings. |
| |
|
|
|
|
| DUCTILITY, TOUGHNESS AND HIGH IMPACT STRENGTH |
|
HIGH WEATHERING RESISTANCE |
|
|
| EONN HDPE Pipes are inherently tough, resilient and resistant to
damage caused by external loads, vibrations, and from pressure
surges such as water hammer. Even in cold weather, polyethylene
piping is tolerant to handling and bending. The high impact strength
of PE pipes compared with other materials ensures a greater
resistance to the rigors of pipe laying conditions. |
|
EONN HDPE Pipes include carbon black in the raw material and
are thus stabilized against ultra violet (UV) light degradation. Our
black polyethylene pipes are suitable for installations where the
pipes are exposed to direct sunlight. |
|
|
Top |
| SPECIFICATIONS
Manufactured from virgin pipe grade raw materials (PE 63, PE 80
and PE100).
HDPE pipes have an average life of more than 50 years, under
normal working conditions
Manufactured as per IS-4984, ISO-4427, DIN 8074, ASTM D 3035
and BS-6437 standards in PE-63, PE-80 and PE-100 grades.
Manufactured from 20 to 315 mm sizes at various pressure rating
from 2.5 to 20 kg/cm² (35.5 to 227.5 psi).
Up to 6 mtr in straight lengths and coils. Higher sizes come in
standard and other straight lengths only. Top |
USE THEM ANYWHERE, WITH CONFIDENCE
The major applications of EONN HDPE Pipes are:
- Lift and gravity water supply systems.
- Micro & sprinkler irrigation systems.
- Sewerage pumping and effluent disposal systems.
- Column pipes for submersible pumps
- Electrical ducts
- Ducts for main transmission lines.
- Mining for above and below ground installations.
- Industrial and Chemical usage, to transport aggressive fluids.
- Submerged Pipelines, for cable ducting, water and sewerage.
- Trenchless Construction – for water supply, sewerage, conduits
and gas. Top
|
OTHER APPLICATIONS
- Marine Outfalls
- Seawater In-takes
- Turnkey Installation Jobs
- Mines De-watering Systems
- Relining of Old Pipelines
- Blowing of O.F. Cables through Solid Lube Ducts
- Slurry Disposal Systems
- Ash Handling Systems
- Industrial Gas and Fume Pipe Lines
- Compressed Air Conveying Systems
- Pipe Line Insulation Cladding
- Dredging Systems
- Marsh Land Drainage Systems
Top |
| APPLICATIONS CHART
| |
|
|
|
|
|
|
|
| TYPE AND COLOUR |
RANGE (MM) |
STANDARD |
APPLICATIONS |
| |
|
|
|
HDPE Black with Blue
Strips.PE-63, PE-80,
PE- 100
|
20 to 315 |
IS:4984
ISO:4427
|
Portable Water,
Submarine Pipeline,
other water
applications |
| |
|
|
|
HDPE Black
Pressure rating class I, II, III,
IV Part I and part II. PN-2.5
and PN-3.2, PN-4.0, PN6.0
|
50 to 200 |
IS:14151-1999
(Part I & Part II)
|
Sprinkler Irrigation |
| |
|
|
|
| HDPE Black |
63 to 315 |
IS : 14333, ISO : 8773
DIN 8077, DIN 8078
|
Sewerage, Effluents |
| |
|
|
|
HDPE-Yellow, Orange &
Black
|
16 to 315 |
IS : 14885
ISO : 4437
|
Gas Distribution &
Conveyance |
| |
|
|
|
Top |
| |
| EONN MEDIUM – DENSITY POLYETHYLENE PIPES |
|
| THE RELIABLE OPTION FOR MULTIPLE APPLICATIONS IN GAS DISTRIBUTION. |
| |
| EONN MDPE Pipes are of the highest quality and meet the IS: 14885 standards specifications. They are manufactured under strict
quality control, in a state-of-the-art plant which uses only the latest manufacturing technology.
The inherent characteristics of MDPE Pipes are corrosion & crack resistance, toughness and flexibility. It is these very qualities that
make Polyethylene Piping Systems the most preferred means of transportation and distribution of water, petrol and natural gases
worldwide. |
 Top |
| |

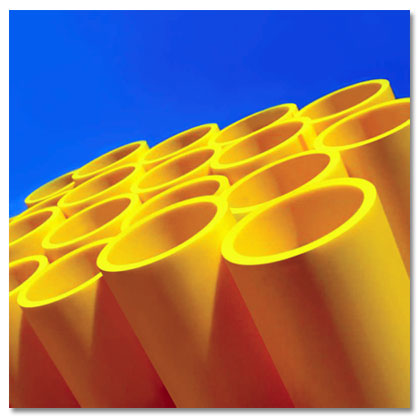

A Wide Range of Sizes:

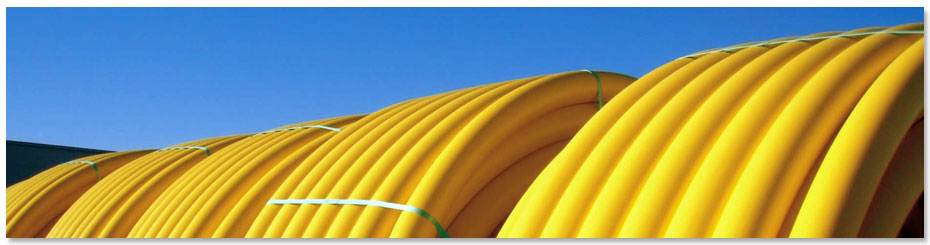

EONN manufactures yellow gas pipes in grades PE-80 & PE-100 for gas applications
in sizes 20 mm to 250 mm (Outer Diameter) in all pressure ratings
Meeting the World's Highest Specifications:
EONN MDPE Pipes conform to national and international standards such as the
ISO-4437, ISO-4427, IS-14885, BS-7281 and DIN-8074/75.
Top-of-the-Line Features:
Flexibility: They are easy to handle and coil.
Corrosion Resistance: Tough and highly reliable, even in aggressive soils.
Fusion Joined: High integrity and reliability.
Light - Weight: They weigh less than the metallic pipes. This makes them much easier
to load, transport, handle and install.
Crack Resistance: Excellent resistance to subsidence, traffic vibrations, point
leading, marshy ground to UV rays.
Homogenous: Their joints are leakage-free and reliable.
UV Stability.
Low Installation Costs.
Earthquake - Resistance.
Long Life: EONN MDPE Pipes have a long service life. While transporting gas at an
ambient temperature, they are estimated to last in excess of 50 years. |
|
 |
